?A unified fault model have been established by Lu Renqi（Institute of Geology, China Earthquake Administration）, Wang Maomao（ Hohai University）, and Li Zhigang（Sun Yat-sen University） for the China Seismic Experimental Site including the surface traces of major active faults, seismic catalogs, and the underground three-dimensional structure of active faults. The fault model reveals the distribution and geometric structure of the main active faults in three dimensions.

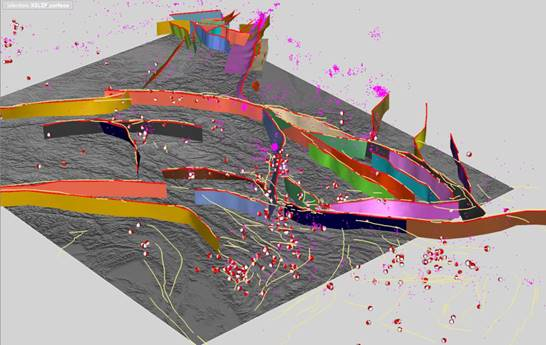

Fig 1. Three-dimensional modeling platform and integrated database in Sichuan and Yunnan

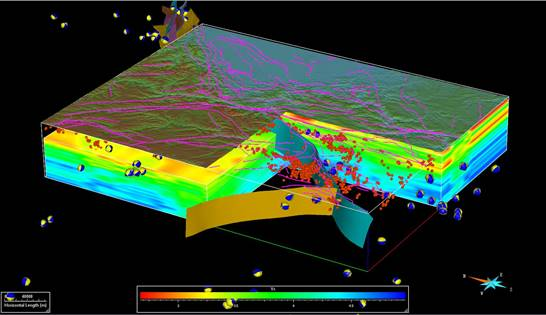

Fig 2. Three-dimensional fault model of main active faults in Sichuan and Yunnan V1.1
Please cite the following reference if this model is used in your research:
Lu Renqi, Wang Maomao, Li Zhigang. (2019). The fault model in China Seismic Experimental Site. CSES Scientific Products., doi:10.12093/04md.02.2019.02.v1
